Product Description

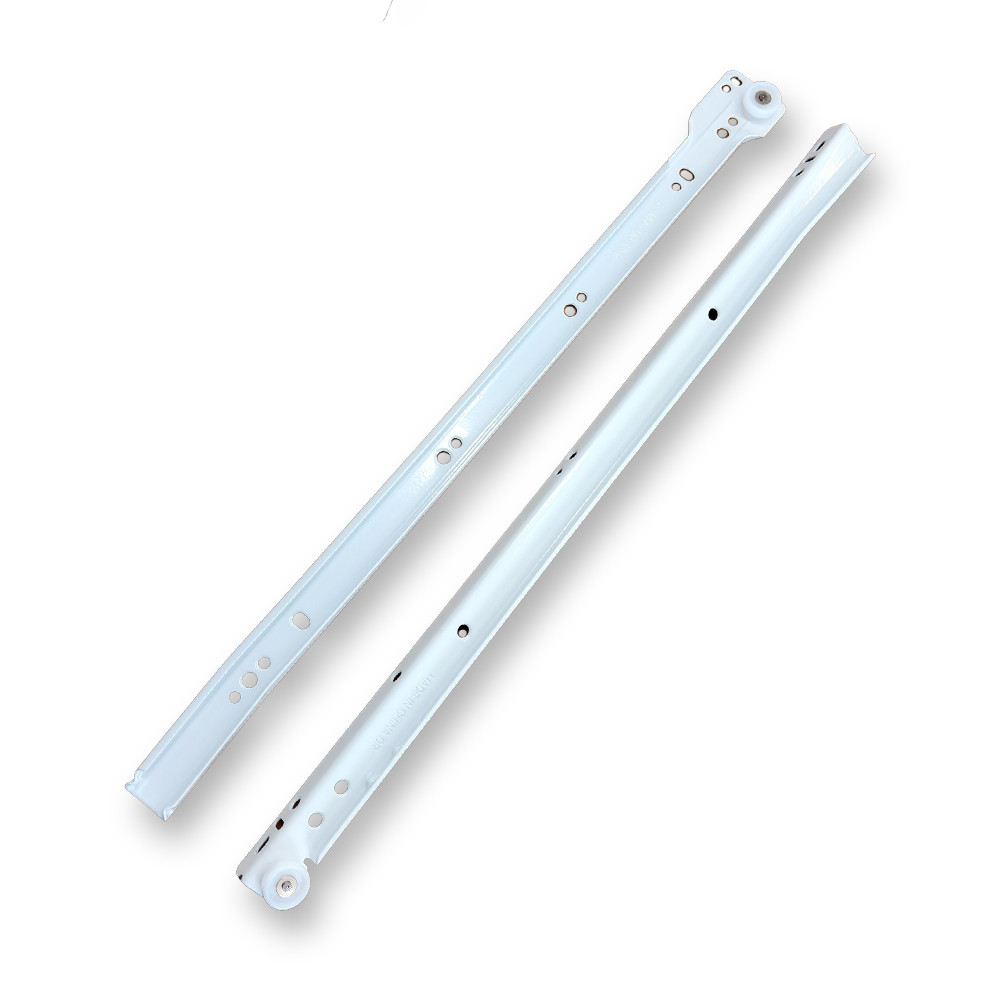

18" Self-Close Euro Drawer Slide by Knape & Vogt. 75 lb. class, 3/4 extension epoxy-coated roller slide features a self-close design to hold drawer in a closed position, a 32mm hole pattern and lift-out disconnect for easy removal from the cabinet. Recommended for drawers up to 18" wide.
Perfect for wood residential and commercial furniture, Commercial cabinetry, Kitchen and bath cabinets and Millwork.
Model: 1805 Self-Close Euro Drawer Slide
Mounting: Side
Disconnect: Lift Out
Hole Pattern: 32mm and Traditional
Face Frame Mounting: Yes
Type: Roller
Travel: 3/4" Extension
Finish: White
Length: 450mm - or 18"
Clearance: .50" + .03"- 0" on each side
Height: 1.39" [35.5mm]
Load: 75 lb. Max.
Drawer Width: 18"
