Lake Erie Tool Works Moxon Vise

Product Description

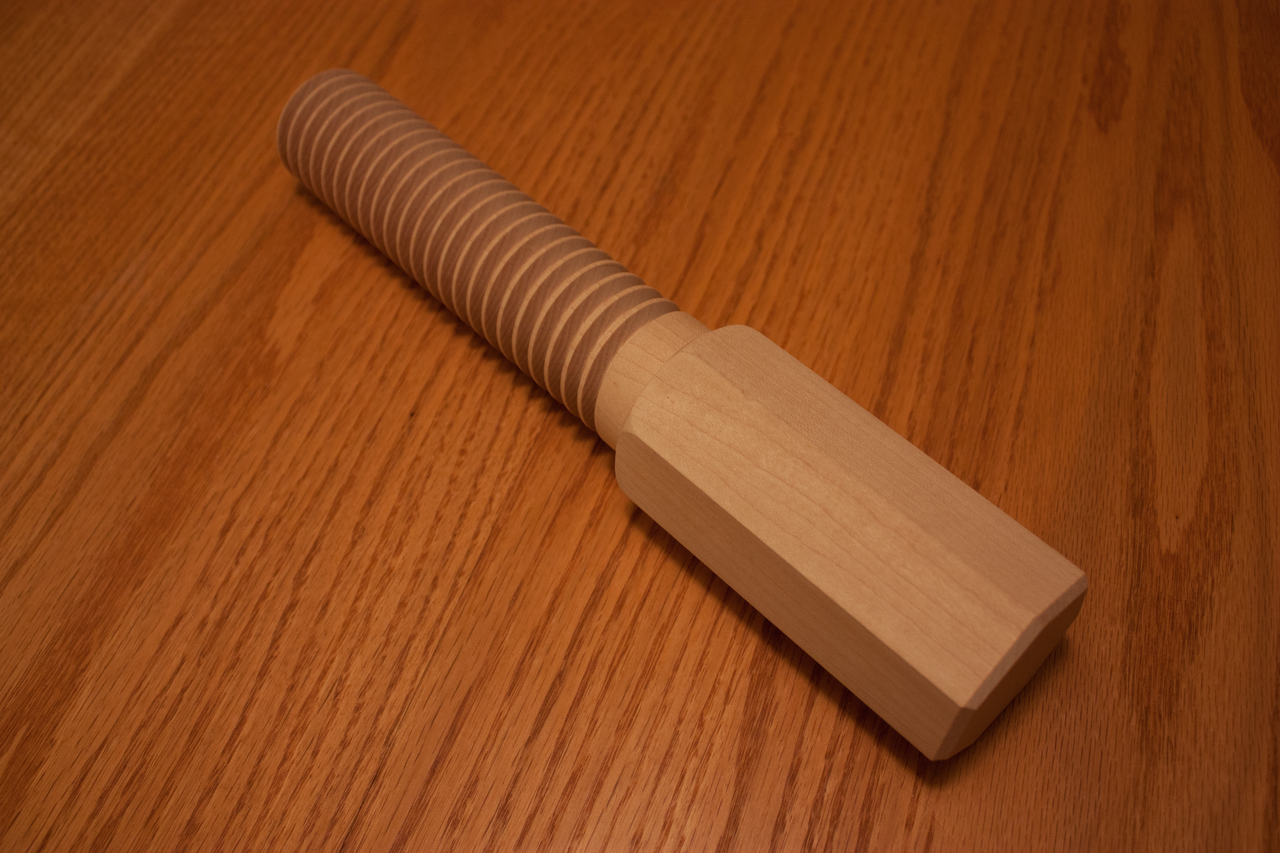

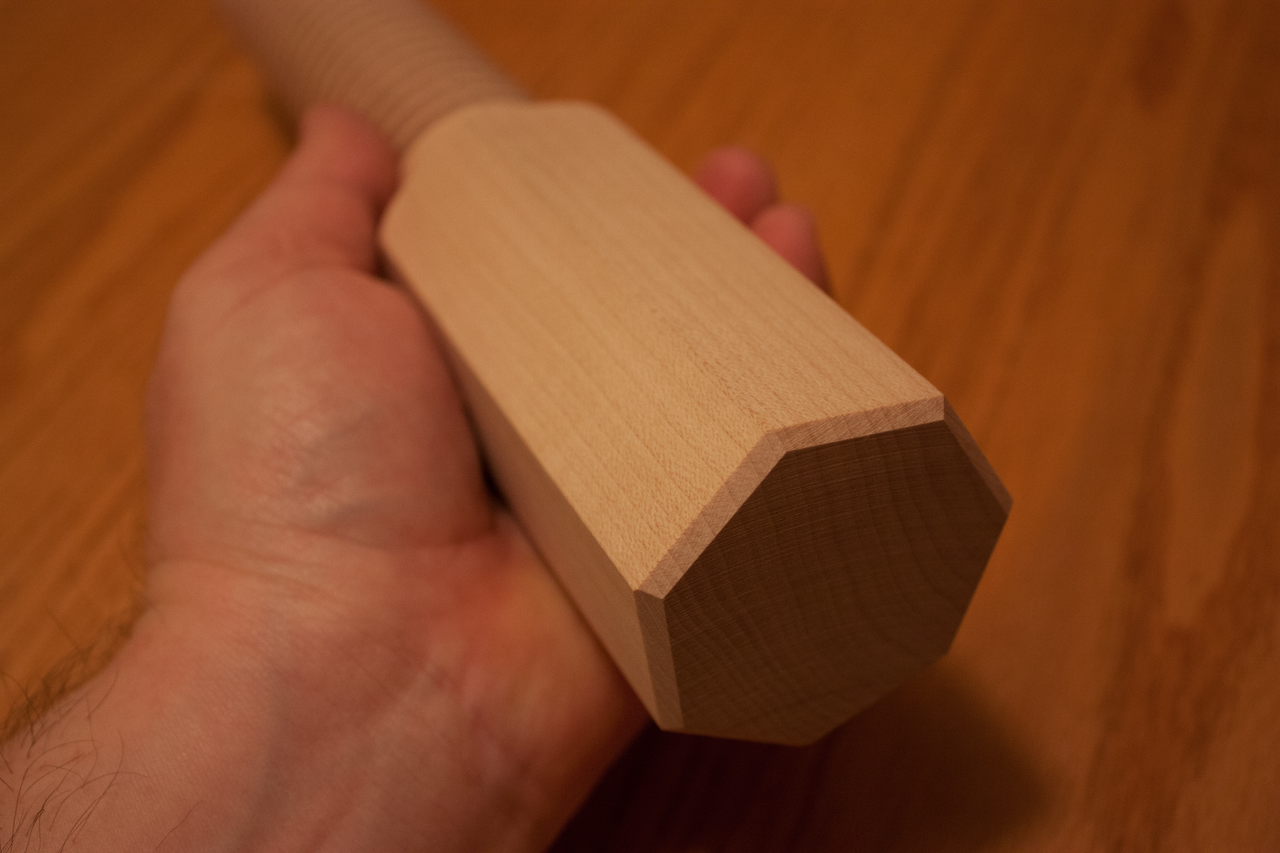

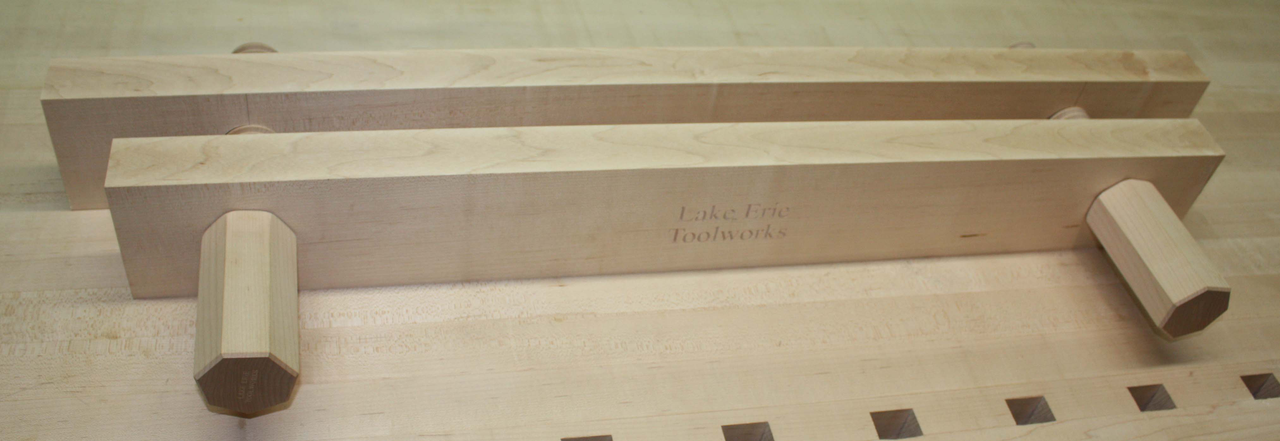

Made in the U.S.A. INCLUDES: Two hard maple wood Moxon vise screws: -Total Length approx: 12". -Hand grip approx.size: 2-3/8" diameter x 4" long. -Threaded section approx.size: 1-3/4" diameter x 7" long. -3-1/2 Threads Per Inch (TPI). -Vise screws are ready for finish . One hard maple front Moxon vise jaw: -Approx.size 1-3/4" thick x 4" tall x 32" long. -Front jaw has an 1/8" overhang which is used to align the vise to the front of the workbench. -Oblong shaped clearance holes on front vise jaw allows clamping of tapered objects. -Front vise jaw is surfaced 4 sides and ready to sand or smooth plane. One hard maple rear Moxon vise jaw: -Approx.size 1-3/4" thick x 3-7/8" tall x 36" long. -Threaded holes. -Rear vise jaw is surfaced 4 sides and ready to sand or smooth plane. Moxon vise capacity: -4-1/4" of capacity between the jaws. -Ability to clamp a full 24" wide panel between the vise screws.
