Product Description

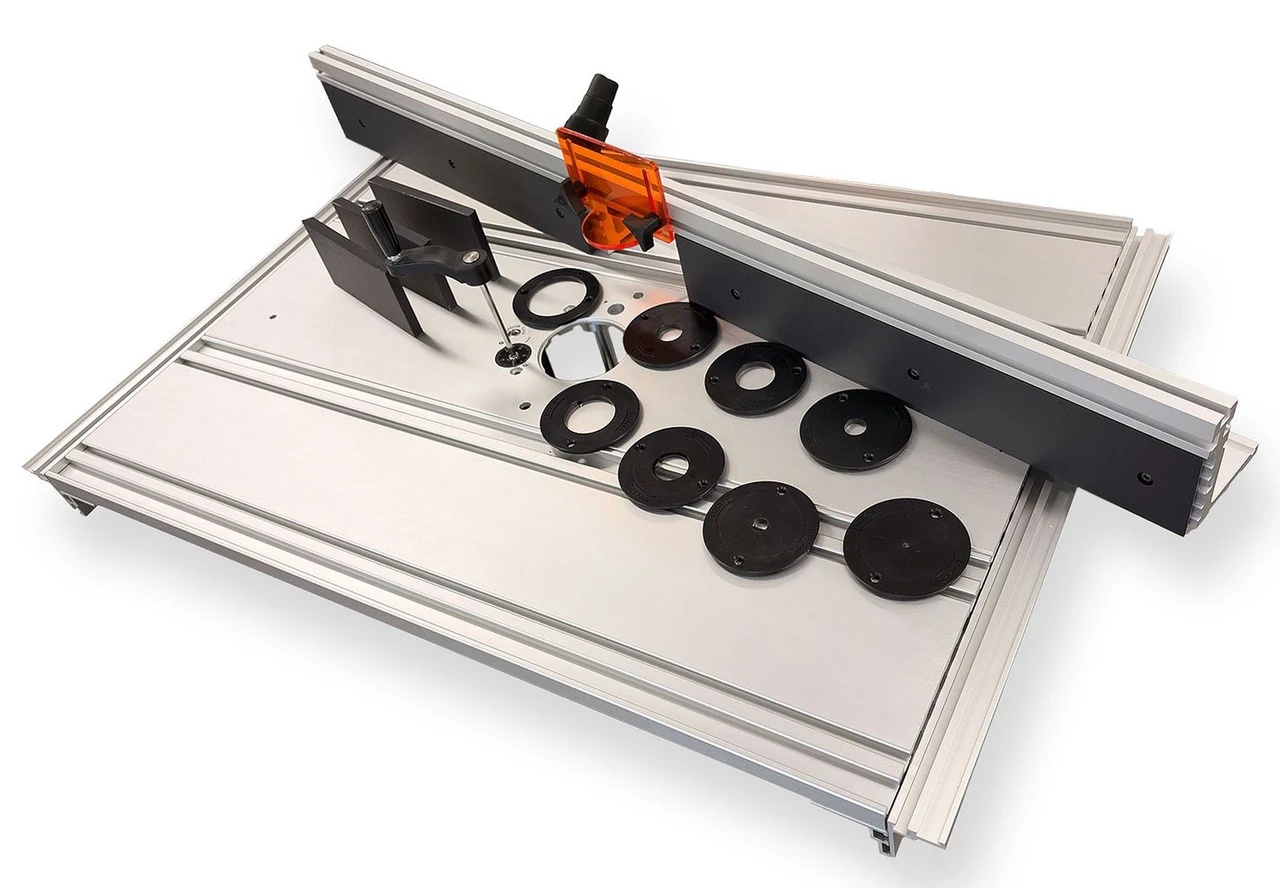

Sommerfeld's Tools Router Table System with built in lift. Change your router bits from above the table!
Our extruded aluminum table measures 36" x 27" which gives you plenty of support for your largest workpieces.
The opening (without insert rings) is 3-5/8" diameter which accepts even your largest panel-raising bits.
The Table Top Includes:
- (8) twist-lock Insert Rings
- Spanner Locking Wrench
- DVD3 - Router Tables Made Easy
- Assorted mounting hardware
- 16-page full-color instruction book for table assembly.
- Plans for building a storage cabinet that fits under the Router table top.
Our easy adjusting best in class Fence is a whopping 48" long x 4-3/4" high
Spring-loaded Pin allows rapid pivot adjustments of Fence from one end - or use Locking Knobs on both Fence ends if you prefer when working with cumbersome workpieces.
4-step Dust Port slides captive over full length of Fence in dovetail slots. Slide out of the way to access bit area for cleaout - accepts 1-1/4", 1-1/2", 2", & 2-1/4" I.D. hose fittings.
Three T-slots for attaching stops, hold-downs or similar devices using 5/16" bolts w/ 1/2" hex heads. Another slot of Fence face for mounting HDPE Sub-fences.
HDPE Sub-fences can be shimmed from behind for outfeed support when making full-height edge cuts.
Zero clearance fence inserts can be customized to match your bits.
Fence Includes:
- (2) HDPE Sub-fences
- (3) Zero Clearance Inserts
- 4-step Dust Port
- 5-32" Allen Driver
- Fence Guard
- Assorted hardware package
- Tapes
